Details

Uses

Due to site limitations or the need to lift materials at a large inclination angle, in order to prevent the scattering of conveyed materials, the sidewall conveyor belt must be able to withstand very high stresses and repeated bending that occur during high-volume, steep-angle conveying. High-quality, very low elongation polyester fabrics are used to provide higher stiffness values. This product is suitable for conveying materials under large inclination angles (0°-90°).

Features

• Conveying materials can achieve a large inclination angle up to 90°

• Large conveying capacity, materials will not scatter. Conveying can transition from horizontal to inclined, and from inclined to horizontal angles.

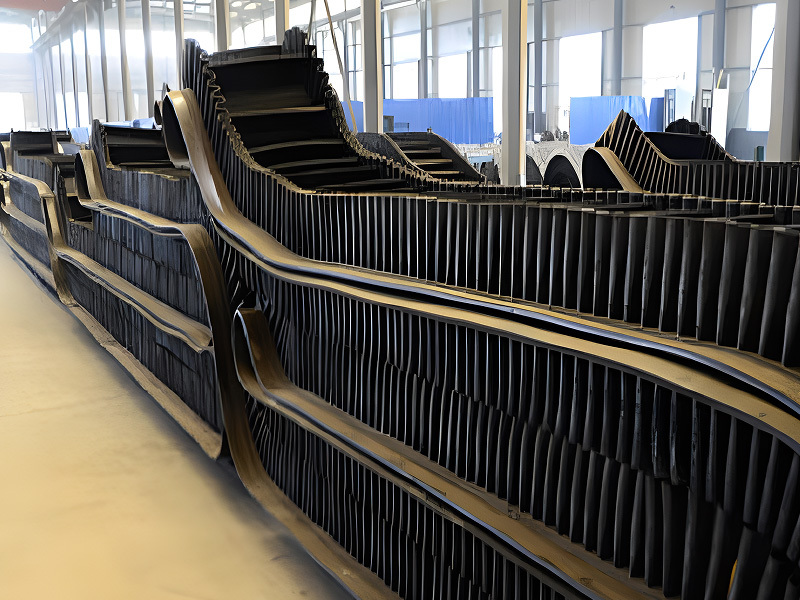

Product Real Shots

Standards

Corrugated Sidewall

The sidewall is made of high-quality rubber.

There are also two types: pure rubber (BG) and rubber with fabric reinforcement layer (BGT)

Note: N-Light Load; S-Medium Load; ES-Heavy Load.

Bulkhead

The bulkhead is made of high-quality rubber and has a high elastic support function.

There are also two types: pure rubber, rubber with fabric reinforcement layer

T		Type	T75	T110
		Height (mm)	75	110
		Weight (Kg/m)	1.65	2.20
		Minimum Roller Diameter (mm)	200	300
TC		Type	TC110	TC140	TC180	TC220	TC260
		Height (mm)	110	140	180	220	260
		Weight (Kg/m)	2.6	5.5	7.0	8.0	10.2
		Minimum Roller Diameter (mm)	350	370	450	500	600
TCS		Type					TCS280	TCS360
		Height (mm)					280	360
		Weight (Kg/m)					18.5	22.0
		Minimum Roller Diameter (mm)					700	700

Cover Rubber Quality/Grade Standard Performance Parameters

Specifications and Technical Parameters of Corrugated Sidewall Multi-layer Fabric Core Conveyor Belt

Bonding strength and elongation performance meet the following table

The covering performance of the tape meets the following table
