Ring conveyor belt
Keyword:
Ring conveyor belt
Details
 |
 |
Definition and Structure
• Definition: A circular conveyor belt is a flat conveyor belt that is made into a circular shape after production through vulcanization joints or other methods. It can also be directly made into a seamless circular conveyor belt during the production process.
• Structure: The belt core is generally made of high-quality all-cotton, cotton-viscose blended canvas or nylon, EP polyester, NN, EE, etc. fabrics. The number of layers is usually 2-8 layers. It also includes top cover rubber and bottom cover rubber. Some special wear-resistant circular sidewall conveyor belts also have a transverse rigid layer.
Features
• Stable operation: The belt core has no joints or the joint strength can reach 90% of the strength of the belt body, the surface has no obvious joint defects, the tension is uniform, the operation is stable, and the elongation at break is small.
• Strong conveying capacity: It can achieve large inclination angles, even 90° conveying, large conveying capacity, and can prevent material scattering. It can smoothly transition and change conveying between horizontal and inclined angles.
• Wide range of applications: According to customer needs, various types such as ordinary type, heat-resistant type (≤180℃), cold-resistant type (no lower than -40℃), acid and alkali-resistant type, high-temperature resistant type (no higher than 200℃), and sanitary type can be produced, suitable for different working environments.
• Strong customizability: According to different conveying needs, such as conveying distance, conveying capacity, material properties, etc., circular conveyor belts with different specifications and different performances can be customized to meet the requirements of various special working conditions.
Working Principle
The motor drives the drive roller through a reducer, and friction is generated between the roller and the conveyor belt, causing the circular conveyor belt to move continuously. The material is transported to the unloading point by friction with the conveyor belt.
Joint Methods
• Directly vulcanized into a circular belt: The conveyor belt is directly vulcanized into a circular shape during the production process, with good integrity and high joint strength.
• Leave raw ends during vulcanization: During use, the joint is vulcanized by heating and pressing according to requirements, which can flexibly adjust the joint position and time.
• On-site bonding with adhesive: The operation is relatively simple, but the requirements for adhesive performance are high.
Uses
• Industrial production: In mining, metallurgy, construction, and other industries, it is used to convey bulk materials such as ore, coal, and sand and gravel; in machinery manufacturing, automobile production, and other factories, it is used for assembly and handling of parts, which can realize automated production processes and improve production efficiency.
• Logistics transportation: In ports and docks, it is used for loading and unloading and transshipment of goods, such as transporting containers from cargo ships to dock yards; in warehouses and logistics centers, it is used for sorting and conveying goods, connecting different work areas, and realizing rapid flow of goods.
• Agricultural field: In grain processing plants, it is used for conveying and processing grains such as wheat and rice; in farms, it is used for conveying feed and manure.
• Commercial field: In the automatic shelf system of supermarkets and shopping malls, it is used for replenishment and display of goods; in the baggage handling system of airports, it is used for conveying and sorting baggage, ensuring that passenger baggage can accurately and quickly reach its destination.
• Food and pharmaceutical industry: In food production enterprises, it is used for packaging and conveying food such as candy and beverages; in pharmaceutical production enterprises, it is used for packaging and conveying medicines and handling raw materials. Sanitary circular conveyor belts can meet the strict requirements of the food and pharmaceutical industries for hygiene and safety.
Precautions for Use
Avoid covering the rollers with materials, prevent the conveyor belt from starting under load, correct deviations in time, repair local damage, and avoid the conveyor belt from being blocked.
Product Pictures
|
|
|
|
 |
 |
Cover Rubber Quality/Grade Standard Performance Parameters
| German Standard DIN-22102 | ||||||
| Grade | Tensile Strength ≥Ma | Elongation at Break ≥M% | Abrasion ≥mm 3 | Bond Strength between Layers (N/mm) | Bond Strength between Cover and Layer (/mm) | |
| Cover Thickness 0.8~1.5mm | Cover Thickness >1.5mm | |||||
| W | 18 | 400 | 90 | ≥5 | 3.5 | 4.5 |
| X | 25 | 450 | 120 | |||
| Y | 20 | 400 | 150 | |||
| Z | 15 | 350 | 250 | |||
| British Standard BS 490 | ||||||
| Grade | Tensile Strength ≥Ma | Elongation at Break ≥M% | Abrasion ≥mm 3 | Bond Strength between Layers (N/mm) | Bond Strength between Cover and Layer (/mm) | |
| Cover Thickness 0.8~1.5mm | Cover Thickness >1.5mm | |||||
| M | 24 | 450 | - | ≥5.25 | 3.15 | 4.5 |
| N | 17 | 400 | - | |||
| Australian Standard AS 1332-2000 | ||||||
| Grade | Tensile Strength ≥Ma | Elongation at Break ≥M% | Abrasion ≥mm 3 | Bond Strength between Layers (N/mm) | Bond Strength between Cover and Layer (/mm) | |
| Cover Thickness 0.8~1.5mm | Cover Thickness >1.5mm | |||||
| A | 17 | 400 | 70 | 6 | 4 | 4.8 |
| E | 14 | 300 | - | |||
| F | 14 | 300 | - | |||
| M | 24 | 450 | 125 | |||
| N | 17 | 400 | 200 | |||
| S | 14 | 300 | 250 | |||
| S* | 12 | 300 | 250 | |||
| South African SANS 1173:2005 | ||||||
| Grade | Tensile Strength ≥Ma | Elongation at Break ≥M% | Abrasion ≥mm 3 | Bond Strength between Layers (N/mm) | ||
| Bond Strength between Cover and Layer (N/mm) | ||||||
| A | 18 | 400 | 90 | ≥7 | ≥5 | |
| X | 25 | 450 | 120 | |||
| M | 24 | 450 | 150 | |||
| N | 20 | 400 | 250 | |||
Specifications and Technical Parameters of Multi-layer Fabric Core Conveyor Belts
| Fabric Type | Fabric Structure | Fabric Model | Rubber Belt Thickness (mm/p) | Strength Series (N/mm) | Cover Rubber Thickness | Width Range (mm) | ||||||
| Warp | Weft | 2 layers | 3 layers | 4 layers | 5 layers | 6 layers | Upper cover layer | Lower cover layer | ||||
|
Nylon EP Polyester NN EE |
Nylon | Nylon | Nylon, EP Polyester, NN, EE-100 | 1.00 | 200 | 300 | 400 | 500 | 600 | 0-12 | 0-10 | 300-2500 |
| Nylon, EP Polyester, NN, EE-125 | 1.05 | 250 | 375 | 500 | 625 | 750 | ||||||
| Nylon, EP Polyester, NN, EE-150 | 1.10 | 300 | 450 | 600 | 750 | 900 | ||||||
| Nylon, EP Polyester, NN, EE-200 | 1.20 | 400 | 600 | 800 | 1000 | 1200 | ||||||
| Nylon, EP Polyester, NN, EE-250 | 1.40 | 500 | 750 | 1000 | 1250 | 1500 | ||||||
| Nylon, EP Polyester, NN, EE-300 | 1.60 | 600 | 900 | 1200 | 1500 | 1800 | ||||||
Bond strength and elongation performance meet the following table
| Bond strength, elongation performance | |||||
| Belt core material | Bond strength | Elongation performance | |||
| Between layers N/mm | Between cover and layer N/mm | Full thickness longitudinal breaking elongation | Full thickness longitudinal reference force elongation | ||
| Cover layer thickness ≤1.5mm | Cover layer thickness ≥1.5mm | ||||
| Polyester canvas | ≥5 | ≥4.5 | ≥5 | ≥10% | ≤4%6 |
The covering performance of the tape meets the following table
| China GB/T7984-2013 GB/T 32457-2015 Tape cover layer performance | |||||
| Cover layer level | Tensile strength | Elongation at break | Abrasion loss | Change rate of tensile strength and elongation at break after aging | |
| Mpa | Kgf/cm2 | % | mm 3 | % | |
| H | ≥24 | ≥240 | ≥450 | ≤120 | -25~ +25 |
| D | ≥18 | 180 | ≥400 | ≤100 | -25~ +25 |
| L | ≥15 | 150 | ≥350 | ≤200 | -25~ +25 |
Packaging and transportation
|
|
|
|

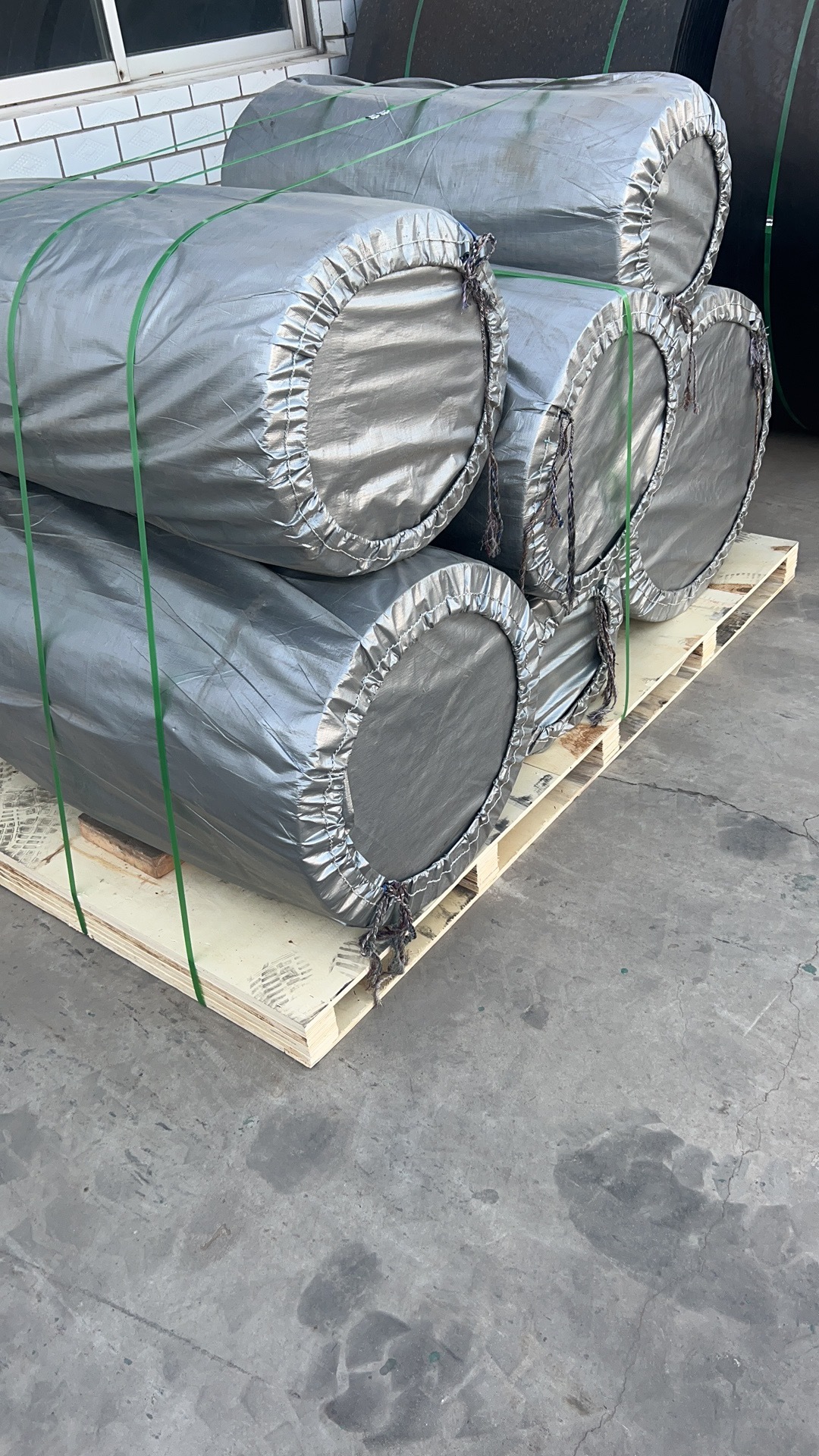

Packaging details
1. Waterproof nylon packaging, with bottom steel pallet or wooden pallet.
2. Standard and appropriate export packaging.
3. Customized packaging is available according to customer requirements.
Frequently Asked Questions
1. Can I customize conveyor belts to meet my business needs?
►Yes, we are Specialized conveyor belt manufacturer ， Focus on customized conveyor belt solutions. We work closely with our customers to customize the belt width, thickness, material composition, and various quality products according to the customer's specific operational requirements. This ensures that our conveyor belts perform optimally in different industrial environments.
2. What payment methods do you accept?
►We offer flexible payment methods to meet customer needs. Common payment methods include Telegraphic Transfer (T/T) and Letter of Credit (L/C) ，especially suitable for large orders. We can also negotiate other payment methods according to the agreement between both parties.
3. What after-sales service do you provide? And how do you guarantee your quality?
►We provide comprehensive after-sales service support, including 24/7 technical support, installation assistance and maintenance advice 。We also provide regular follow-up services to ensure smooth operation and long-term satisfaction! We have an internal testing laboratory and adhere to the principle that only qualified products can be shipped! For many years, we have been one of the suppliers of internationally renowned companies, and our customers are located in various countries and regions around the world, including mining, stone crushing, sand washing, ports, power plants, metallurgy, chemical industry, coal, steel plants, cement plants, construction and other industries. Our excellent quality is widely praised.
4. How do I place an order? What is the delivery time?
►You can WeChat, WhatsApp, phone, email and website Contact us to place an order. Regular models 5-7 days delivery ，the delivery time for other customized products depends on the product type and customization requirements.
5. Can I get samples for inspection and testing?
►Yes, samples can be sent for testing before bulk orders. Samples are created according to customer requirements, allowing customers to evaluate the performance of belts and rollers.
6. Can I print my LOGO on the conveyor belt products?
Yes, we are a custom manufacturer, supporting processing, OEM, and before mass production, please inform us of your logo or design.
| Experienced and strong team | Advanced and first-class production equipment | First-class testing equipment | Successful customer collaborations |
 |
 |
 |
 |
| Our global sales and R&D teams go beyond transactional relationships, providing personalized support at every stage of the customer journey. | We have invested heavily in advanced conveyor belt production lines, including automated systems that ensure the precision, reliability, and scalability of our products. | We have in-house testing equipment to ensure that every conveyor belt we produce undergoes rigorous quality control. From tensile strength and abrasion resistance to high-temperature resistance, we can meet your requirements. | We have established long-term partnerships with customers in the cement, mining, power plants, chemical, steel, coal, mining, and grain industries, fully demonstrating the trust and confidence companies have in us. |
Why choose our conveyor belts?
1. Engineering design and consulting
FANGNUO Rubber Conveyor Belt is one of the best custom belt manufacturers in China. Our conveyor belts are ideal for handling various heavy-duty and abrasive materials for bulk material handling, successfully meeting the needs of various industries, including stone crushing and screening, sand washing, fertilizer, grain conveying, steel plants, power plants, cement plants, metallurgy, coal, ports and docks, construction, and more. As a one-stop conveyor engineering manufacturer, we also provide excellent solutions for conveying material problems and after-sales service for various applications.
2. Excellent customer service
We specialize in producing heavy-duty (nylon, EP polyester, EE, NN) multi-ply fabric core rubber conveyor belts, steel cord conveyor belts, corrugated edge conveyor belts, bucket elevator conveyor belts, herringbone conveyor belts, and circular conveyor belts. As a high-quality conveyor belt manufacturer, supplier, and exporter in China, we focus on providing customers with high-quality conveyor belts and professional services. FANGNUO has grown rapidly through innovation and professional service, and we are eager to expand our domestic and international markets!
3. Customization
OEM supported, meeting all your needs, regardless of size, even if you only have an idea, we will help you realize it.
We have a strong R&D team that can develop and produce products based on customer-provided drawings or samples.
4. Cost-effectiveness
Same quality, lower price; same price, better quality; fast production cycle; short time; efficient and durable; reliable quality. We are based in the mid-to-high-end market, and our products meet international standards.
Professional testing equipment (conveyor belt testing laboratory)
Application areas
Cement industry Limestone transportation |
Chemical industry Hazardous materials transportation |
Mining industry Raw material transportation |
Quarrying Sand and gravel conveying |
FAQ
Characteristics of Polyester Conveyor Belt
High modulus, low elongation, good heat stability, impact resistance and other characteristics, suitable for medium and long distance, high-speed, high-speed conditions of conveying materials.
Body material for heat-resistant conveyor belts
The subject material of the heat-resistant conveyor belt includes a skeleton material, a covering layer and a base material.
Selection of the diameter of the conveying roller
The selection of roller diameter should consider the following factors: the average specific pressure between the conveyor belt and the roller surface, the amount of deformation of the bag and the bag, the utilization rate of the allowable strength of the conveyor belt, the frequency of bending of the conveyor belt, the installation location of the conveyor and the conditions of use.
Main material of nylon conveyor belt
The main material of the nylon conveyor belt is nylon, but it does not have enough tension, so it is necessary to add a layer of industrial polyester cloth between nylon and nylon to increase the tension when making the finished product.
The advantages of the pattern conveyor belt
The pattern conveyor belt can ensure the smooth transportation of materials, with anti-skid, impact resistance, and high temperature resistance.
