Extra-wide conveyor belt
Keyword:
Extra-wide conveyor belt
Details
 |
 |
Uses
Extra-wide conveyor belts are mainly used for high-volume material transportation in industrial sectors such as mining, steel, and cement; parcel and goods sorting and transportation in logistics; bulk cargo loading and unloading in ports; material transportation in construction; and grain transportation and processing in agriculture, etc.
Definition and Characteristics
Definition: An extra-wide conveyor belt refers to a conveyor belt wider than the conventional standard; its width can range from BW400mm to BW6500mm.
Extra-wide design: It can meet the needs of large-scale equipment and projects, improving material transportation efficiency.
High-strength materials: Usually made of high-strength canvas, steel wire ropes, or synthetic materials, it has strong tensile strength and wear resistance, capable of withstanding high loads and transporting large-sized materials.
Good tensile resistance: The special structural design and the use of high-strength materials give the extra-wide conveyor belt good tensile resistance during long-distance transportation, reducing elongation and deformation, and improving transportation accuracy and stability.
Strong adaptability: Suitable for various working conditions and environments, such as high temperature, low temperature, high humidity, and strong corrosion, meeting material transportation needs under special conditions.
Low maintenance cost: The special structural design and the use of excellent materials give the extra-wide conveyor belt a long service life and a low failure rate, reducing equipment maintenance costs and downtime.
Energy saving: Usually using a lower transportation speed and larger-diameter rollers can reduce the friction loss and energy consumption of the conveyor belt.

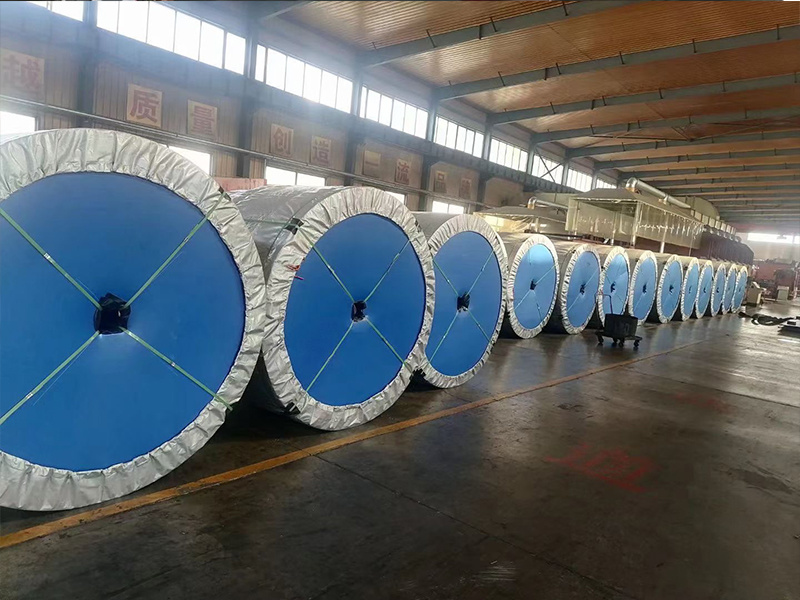

Product Photos
Application Areas
Extra-wide conveyor belts are widely used in multiple industrial fields, including but not limited to:
• Mining: Used for raw material transportation in large mines, such as coal, ore, and iron ore.
• Ports and Logistics: Used for cargo loading and unloading in ports, such as containers and bulk cargo, as well as rapid cargo transportation in large logistics centers.
• Building Materials: Suitable for the building materials industry, such as the transportation of cement, sand, gravel, and gypsum boards.
• Steel and Metallurgy: Used for the transportation of iron ore and other raw materials, as well as the transfer of finished steel products.
• Grain Processing: Used for grain transportation and stacking, such as wheat, rice, and corn.
• Power: Used for the transportation of coal and petroleum coke in power plants and power transmission and distribution systems.
• Chemical Industry: Used for the transportation of chemical raw materials and finished products, meeting the requirements of chemical processes for special materials.
• Environmental Protection: Used for waste transportation and processing in waste treatment plants and waste recycling industries.
Cover Rubber Quality/Grade Standard Performance Parameters
| German Standard DIN-22102 | ||||||
| Grade | Tensile Strength ≥Ma | Elongation at Break ≥M% | Abrasion Loss ≥mm 3 | Bond Strength between Layers (N/mm) | Bond Strength between Cover and Layer (/mm) | |
| Cover Thickness 0.8~1.5mm | Cover Thickness >1.5mm | |||||
| W | 18 | 400 | 90 | ≥5 | 3.5 | 4.5 |
| X | 25 | 450 | 120 | |||
| Y | 20 | 400 | 150 | |||
| Z | 15 | 350 | 250 | |||
| British Standard BS 490 | ||||||
| Grade | Tensile Strength ≥Ma | Elongation at Break ≥M% | Abrasion Loss ≥mm 3 | Bond Strength between Layers (N/mm) | Bond Strength between Cover and Layer (/mm) | |
| Cover Thickness 0.8~1.5mm | Cover Thickness >1.5mm | |||||
| M | 24 | 450 | - | ≥5.25 | 3.15 | 4.5 |
| N | 17 | 400 | - | |||
| Australian Standard AS 1332-2000 | ||||||
| Grade | Tensile Strength ≥Ma | Elongation at Break ≥M% | Abrasion Loss ≥mm 3 | Bond Strength between Layers (N/mm) | Bond Strength between Cover and Layer (/mm) | |
| Cover Thickness 0.8~1.5mm | Cover Thickness >1.5mm | |||||
| A | 17 | 400 | 70 | 6 | 4 | 4.8 |
| E | 14 | 300 | - | |||
| F | 14 | 300 | - | |||
| M | 24 | 450 | 125 | |||
| N | 17 | 400 | 200 | |||
| S | 14 | 300 | 250 | |||
| S* | 12 | 300 | 250 | |||
| South African SANS 1173:2005 | ||||||
| Grade | Tensile Strength ≥Ma | Elongation at Break ≥M% | Abrasion Loss ≥mm 3 | Bond Strength between Layers (N/mm) | ||
| Bond Strength between Cover and Layer (N/mm) | ||||||
| A | 18 | 400 | 90 | ≥7 | ≥5 | |
| X | 25 | 450 | 120 | |||
| M | 24 | 450 | 150 | |||
| N | 20 | 400 | 250 | |||
Specifications and Technical Parameters of Multi-layer Fabric Core Conveyor Belts
| Fabric Type | Fabric Structure | Fabric Model | Rubber Thickness (mm/p) | Strength Series (N/mm) | Cover Rubber Thickness | Width Range (mm) | ||||||
| Warp | Weft | 2 Layers | 3 Layers | 4 Layers | 5 Layers | 6 Layers | Top Cover Layer | Bottom Cover Layer | ||||
|
Nylon EP Polyester NN EE |
Polyamide | Polyamide | Nylon/EP Polyester/NN/EE-100 | 1.00 | 200 | 300 | 400 | 500 | 600 | 0-12 | 0-10 | 300-2500 |
| Nylon/EP Polyester/NN/EE-125 | 1.05 | 250 | 375 | 500 | 625 | 750 | ||||||
| Nylon/EP Polyester/NN/EE-150 | 1.10 | 300 | 450 | 600 | 750 | 900 | ||||||
| Nylon/EP Polyester/NN/EE-200 | 1.20 | 400 | 600 | 800 | 1000 | 1200 | ||||||
| Nylon/EP Polyester/NN/EE-250 | 1.40 | 500 | 750 | 1000 | 1250 | 1500 | ||||||
| Nylon/EP Polyester/NN/EE-300 | 1.60 | 600 | 900 | 1200 | 1500 | 1800 | ||||||
Adhesive strength and elongation performance meet the following table
| Adhesive strength, elongation performance | |||||
| Core material | Adhesive strength | Elongation performance | |||
| Inter-layer N/mm | Cover layer and inter-layer N/mm | Total thickness longitudinal breaking elongation | Total thickness longitudinal reference force elongation | ||
| Cover layer thickness ≤1.5mm | Cover layer thickness ≥1.5mm | ||||
| Polyester canvas | ≥5 | ≥4.5 | ≥5 | ≥10% | ≤4%6 |
The covering performance of the tape meets the following table
| Covering layer performance of the tape | |||||
| Covering layer level | Tensile strength | Elongation at break | Abrasion | Change rate of tensile strength and elongation at break after aging | |
| Mpa | Kgf/cm2 | % | mm 3 | % | |
| H | ≥24 | ≥240 | ≥450 | ≤120 | -25~ +25 |
| D | ≥18 | 180 | ≥400 | ≤100 | -25~ +25 |
| L | ≥15 | 150 | ≥350 | ≤200 | -25~ +25 |

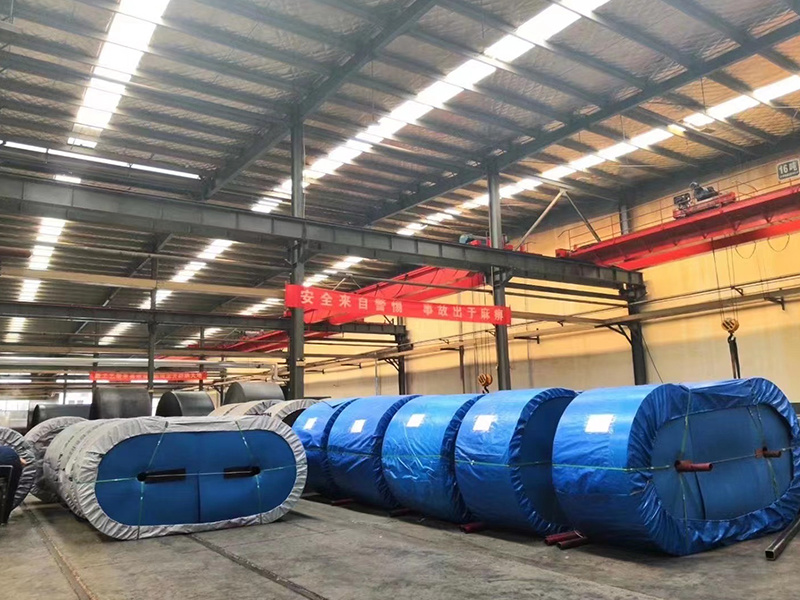

Packaging and transportation
 |
 |
 |
 |
 |
 |
 |
 |
Packaging details
1. Waterproof nylon packaging, with bottom steel pallet or wooden pallet.
2. Standard and appropriate export packaging.
3. Customized packaging can be provided according to customer requirements.
Frequently Asked Questions
1. Can I customize conveyor belts to meet my business needs?
►Yes, we are specialized custom conveyor belt manufacturer ， Focus on customized conveyor belt solutions. We work closely with our customers to customize the belt width, thickness, material composition, and various quality products according to the customer's specific operational requirements. This ensures that our conveyor belts perform optimally in different industrial environments.
2. What payment methods do you accept?
►We offer flexible payment methods to meet customer needs. Common payment methods include Telegraphic Transfer (T/T) and Letter of Credit (L/C) ，especially suitable for large orders. We can also negotiate other payment methods according to the agreement between both parties.
3. What after-sales service do you provide? And how do you guarantee your quality?
►We provide comprehensive after-sales service support, including 24/7 technical support, installation assistance and maintenance advice 。We also provide regular follow-up services to ensure smooth operation of the product and long-term satisfaction! We have an in-house testing laboratory and adhere to the principle that only qualified products can be shipped! For many years, we have been one of the suppliers to internationally renowned companies, and our customers are located in various countries and regions around the world, including mining, stone crushing, sand washing, ports, power plants, metallurgy, chemical industry, coal, steel plants, cement plants, and construction industries. Our excellent quality has been widely praised.
4. How do I place an order? What is the delivery time?
►You can Contact us via WeChat, WhatsApp, phone, email, and website to place an order. Regular models 5-7 days delivery ，the delivery time for other customized products depends on the product type and customization requirements.
5. Can I get a sample for inspection and testing?
►Yes, samples can be sent for testing before bulk orders. Samples are created according to customer requirements, allowing customers to evaluate the performance of belts and rollers.
6. Can I print my LOGO on the conveyor belt products?
►Yes, we are a custom manufacturer, support processing, support OEM, please inform us of your logo or design before mass production.
| Experienced and strong team | Advanced and first-class production equipment | First-class testing equipment | Successful customer cooperation |
 |
 |
 |
 |
| Our global sales team/R&D team goes beyond transactional relationships, providing personalized support at every stage of the customer journey. | We have invested heavily in advanced conveyor belt production lines, including automated systems that ensure the precision, reliability, and scalability of our products. | We have in-house testing equipment to ensure that every conveyor belt we produce undergoes rigorous quality control. From tensile strength and wear resistance to high-temperature resistance, we can meet your requirements. | We have established long-term cooperative relationships with customers in the cement industry, mining industry, power plants, chemical industry, steel industry, coal industry, mining industry, grain industry, etc., fully demonstrating the trust and confidence of enterprises in us. |
Why choose us?
1. Engineering design and consulting
Fangnuo Rubber Conveyor Belt is one of the best custom belt manufacturers in China. Our conveyor belts are ideal for handling various heavy-duty and abrasive materials in bulk material processing, successfully meeting the needs of various industries, including stone crushing and screening, sand washing, fertilizer, grain conveying, steel plants, power plants, cement plants, metallurgy, coal, ports and docks, and construction. As a one-stop conveyor engineering manufacturer, we also provide excellent solutions for conveying material problems and after-sales service for various applications.
2. Excellent Customer Service
We specialize in producing heavy-duty (nylon, EP polyester, EE, NN) multi-ply fabric core rubber conveyor belts, herringbone conveyor belts, circular conveyor belts, steel cord conveyor belts, corrugated edge conveyor belts, bucket elevator conveyor belts, etc. As a high-quality conveyor belt manufacturer, supplier, and exporter in China, we focus on providing customers with high-quality conveyor belts and professional services. Fangnuo Company has grown rapidly through innovation and professional services, and we are eager to expand our domestic and international markets!
3. Customization
OEM supported, meeting all your needs, regardless of size. Even if you only have an idea, we will help you realize it.
We have a strong R&D team that can develop and produce products according to customer-provided drawings or samples.
4. Cost-effectiveness
Same quality, lower price; same price, better quality; fast production cycle; short time; efficient and durable; reliable quality. We are based in the mid-to-high-end market, and our products meet international standards.
Professional Conveyor Belt Testing Equipment (Testing Laboratory)
Application Areas
Cement Industry Limestone Transportation |
Chemical Industry Hazardous Materials Transportation |
Mining Industry Raw Material Transportation |
Quarrying Sand and Gravel Conveying |
FAQ
Characteristics of Polyester Conveyor Belt
High modulus, low elongation, good heat stability, impact resistance and other characteristics, suitable for medium and long distance, high-speed, high-speed conditions of conveying materials.
Body material for heat-resistant conveyor belts
The subject material of the heat-resistant conveyor belt includes a skeleton material, a covering layer and a base material.
Selection of the diameter of the conveying roller
The selection of roller diameter should consider the following factors: the average specific pressure between the conveyor belt and the roller surface, the amount of deformation of the bag and the bag, the utilization rate of the allowable strength of the conveyor belt, the frequency of bending of the conveyor belt, the installation location of the conveyor and the conditions of use.
Main material of nylon conveyor belt
The main material of the nylon conveyor belt is nylon, but it does not have enough tension, so it is necessary to add a layer of industrial polyester cloth between nylon and nylon to increase the tension when making the finished product.
The advantages of the pattern conveyor belt
The pattern conveyor belt can ensure the smooth transportation of materials, with anti-skid, impact resistance, and high temperature resistance.
