Details

Features

• Wire rope conveyor belts have proven to be a highly reliable and cost-effective method for conveying bulk materials in long-distance conveyor systems. We offer laterally reinforced belts, belts with embedded sensor coils, and standard wire rope belts.
(1) Belt elongation: ST500~ST5000(kN/m)
(2) Belt width: 600~2200mm
(3) Minimum length: 100m

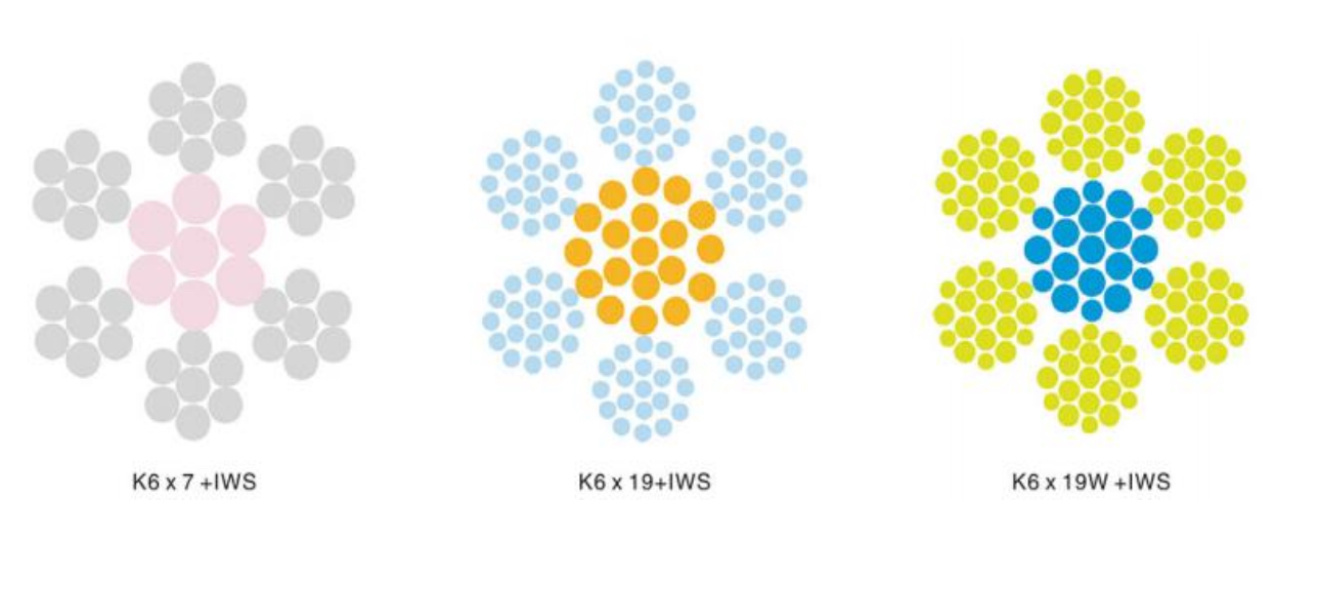

• Our wire rope conveyor belts use high-quality, high-strength wire ropes and various wear-resistant layer grades to meet the needs of various industries. The standard structure uses 7 x 7 hot-dip galvanized wire rope, with extremely high tensile strength, up to 2,000 N/mm. For applications requiring higher strength, we offer a 7 x 19 structure with a tensile strength of up to 10,000 N/mm.

• The wire rope is designed with an elongation of 0.22% - 0.28% to ensure high structural integrity and pulling force. This helps improve fatigue resistance. The open cross-laid wire rope structure, combined with a powerful chemical bonding system, allows for complete penetration of the core rubber, ensuring strong bonding and lasting corrosion resistance.

♦ Multifunctional wear-resistant layer grades

We offer a range of wear-resistant layer grades, all made of superior rubber, with extremely high wear, cut, and impact resistance, as well as excellent aging resistance. The choice of wear-resistant layer grade depends on the specific application and significantly affects the service life of the conveyor belt. Choose the conveyor belt that suits your needs, minimize waste, and support your sustainability goals.

• Wear-resistant options:

For heavy-duty conveying tasks involving large and sharp materials (such as abrasive rocks), our conveyor belts offer X, Y, and W grades (and equivalent grades). These high-quality wear-resistant layers provide ideal protection for the conveyor belt carcass, ensuring extended service life.

• High-temperature resistant type

We offer special grades for high-temperature applications, including T120 and T200, suitable for materials such as cement clinker, coke, foundry sand, and slag. These conveyor belts are designed to withstand continuous temperatures up to 190°C and can withstand short-term temperature peaks up to 200°C.

• Flame retardant compliance

Our conveyor belts offer flame retardant grade K, complying with ISO 340 standards. These conveyor belts are ideal for use in tunnel engineering but are not recommended for underground applications.

Product photos

Wire rope core conveyor belt technical parameters

Wire rope core conveyor belt technical specifications

Packaging and transportation

Packaging details

1. Waterproof nylon packaging with a steel pallet at the bottom.

2. Standard and appropriate export packaging.

3. According to customer requirements.

Frequently Asked Questions

1. Can I customize conveyor belts to meet my business needs?

►Yes, we are a professional custom conveyor belt manufacturer ， focused on customized conveyor belt solutions. We work closely with our customers to customize products such as belt width, thickness, material composition, and various qualities according to their specific operational requirements. This ensures that our conveyor belts perform optimally in different industrial environments.

2. What payment methods do you accept?

►We offer flexible payment methods to meet customer needs. Commonly used payment methods include Telegraphic Transfer (T/T) and Letter of Credit (L/C) ，especially for large orders. We can also agree on other payment methods based on mutual agreement.

3. What after-sales service do you provide? And how do you guarantee your quality?

►We provide comprehensive after-sales service support, including 24/7 technical support, installation assistance, and maintenance advice 。We also provide regular follow-up services to ensure smooth product operation and long-term satisfaction! We have an in-house testing laboratory and adhere to the principle of qualified products before shipment! For many years, we have been one of the suppliers to internationally renowned companies, and our customers are located in various countries and regions, including mining, stone crushing, sand washing, ports, power, metallurgy, chemical, coal, steel plants, cement plants, and construction industries. Our excellent quality is widely praised.

4. How do I place an order? What is the delivery time?

►You can contact us via WeChat, WhatsApp, phone, email, and website to place an order. For regular models, 5-7 days delivery ，the delivery time for other customized products depends on the product type and customization requirements.

5. Can I get samples for inspection and testing?

Yes, samples can be sent for testing before bulk orders. Samples are created according to customer requirements, allowing customers to evaluate the performance of the belts and rollers.

6. Can I print my logo on the conveyor belt products?

Yes, we are a customized manufacturer, supporting processing, OEM, please inform us of your logo or design before mass production.

A strong team with rich experience	Advanced and first-class production equipment	First-class testing equipment	Successful customer collaborations
Our global sales and R&D teams go beyond transactional relationships, providing personalized support at every stage of the customer journey.	We have invested heavily in advanced conveyor belt production lines, including automated systems that ensure the precision, reliability, and scalability of our products.	We have in-house testing equipment to ensure that every conveyor belt we produce undergoes rigorous quality control. From tensile strength and wear resistance to high-temperature resistance, we can meet your requirements.	We have established long-term cooperative relationships with customers in the cement, mining, power plants, chemical, steel, coal, mining, and grain industries, fully demonstrating the trust and confidence enterprises have in us.

Why choose our conveyor belt manufacturing?

1. Engineering design and consulting

Fangnuo Rubber Conveyor Belt is one of the best custom belt manufacturers in China. Our conveyor belts are ideal for handling various heavy and abrasive materials for bulk material handling, successfully meeting the needs of various industries, including stone crushing and screening, sand washing, fertilizer, grain conveying, steel plants, power plants, cement plants, metallurgy, coal, ports and docks, construction, and more. As a one-stop conveyor engineering manufacturer, we also provide excellent solutions for conveying material problems and after-sales service for various applications.

2. Excellent customer service

We specialize in producing heavy-duty (nylon, EP polyester, EE, NN) multi-layer fabric core rubber conveyor belts, steel cord conveyor belts, corrugated edge conveyor belts, bucket elevator conveyor belts, herringbone conveyor belts, and circular conveyor belts. As a high-quality conveyor belt manufacturer, supplier, and exporter in China, we focus on providing customers with high-quality conveyor belts and professional services. Fangnuo Company has grown rapidly through innovation and professional services, and we are eager to expand our domestic and international markets!

3. Customization

OEM supported, meeting all your needs, regardless of size, even if you only have an idea, we will help you realize it.

We have a strong R&D team that can develop and produce products based on drawings or samples provided by customers.

4. Cost-effectiveness

Same quality, lower price; same price, better quality; fast production cycle; short time; efficient and durable; reliable quality. We are based in the mid-to-high-end market, and our products meet international standards.

Professional testing equipment (conveyor belt testing laboratory)

Application areas

Cement industry Limestone transportation

Chemical industry Hazardous materials transportation

Mining industry Raw material transportation

Quarrying Sand and gravel conveying
