EP polyester conveyor belt
Keyword:
EP polyester conveyor belt
Details
 |
 |
Usage

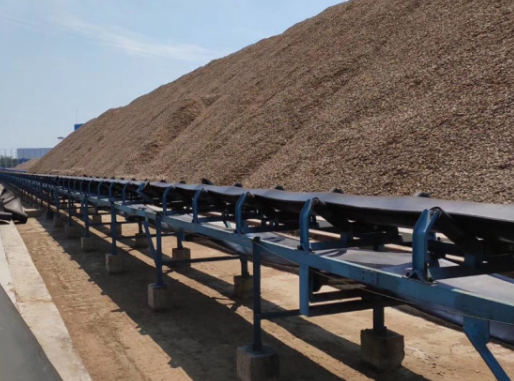

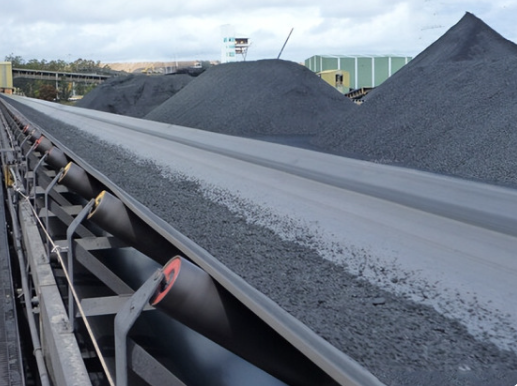

Polyester conveyor belts (EP conveyor belts) are widely used in coal, mining, ports, metallurgy, power, chemical and other fields for material conveying.
Features
1. High strength, thin belt, light weight.

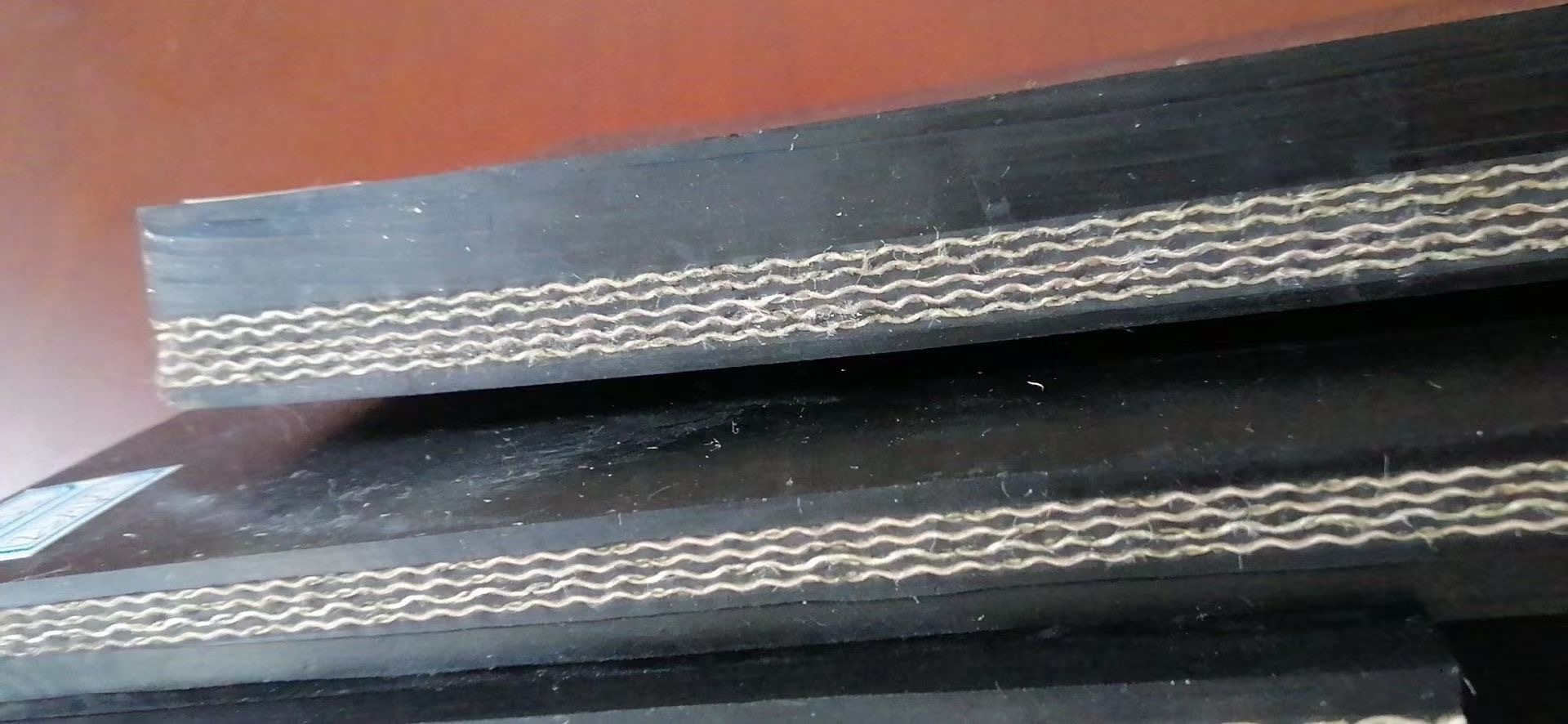

2. Using EP rubberized canvas as the skeleton material.
3. The belt is soft, has good troughing properties, and good elasticity.
4. Impact resistant, wear resistant, corrosion resistant.
5. Suitable for larger loads, faster speeds and medium and long-distance material transportation.
6. Stable operation, no deviation.
Specifications and Technical Parameters
| Specifications and technical parameters of EP polyester conveyor belts | ||||||||||
| Fabric Type |
Fabric Structure | Fabric Model | Rubber Thickness | Strength Series (N/mm) | Cover Rubber Thickness (mm) |
Width Range (mm) |
||||
| Warp | Weft | 2 layers | 3 layers | 4 layers | Top Cover Rubber | Bottom Cover Rubber | ||||
| Polyester (EP) |
Polyester | Nylon | EP-80 | 1.00 | 160 | 240 | 320 | 0-12 | 0-10 | 300-2500 |
| EP-100 | 1.00 | 200 | 300 | 400 | ||||||
| EP-125 | 1.05 | 250 | 375 | 500 | ||||||
| EP-150 | 1.10 | 300 | 450 | 600 | ||||||
| EP-170 | 1.10 | 340 | 510 | 680 | ||||||
| EP-200 | 1.20 | 400 | 600 | 800 | ||||||
| EP-250 | 1.40 | 500 | 750 | 1000 | ||||||
| EP-300 | 1.60 | 600 | 900 | 1200 | ||||||
| EP-350 | 1.70 | 1050 | 1400 | |||||||
| EP-400 | 1.90 | 1600 | ||||||||
| EP-500 | 2.10 | 2000 | ||||||||
Bonding strength and elongation performance meet the following table
| Bonding Strength, Elongation Performance | |||||
| Belt Core Material |
Bonding Strength | Elongation Performance | |||
| Interlayer N≥mm | Between cover and layer N/mm |
Total thickness longitudinal breaking elongation | Total thickness longitudinal reference force elongation | ||
| Cover thickness ≤1.5mm | Cover thickness ≥1.5mm | ||||
| EP polyester canvas | ≥5 | ≥4.5 | ≥5 | ≥10% | ≤4% |
Cover rubber quality/grade standard performance parameters
| China GB/T7984-2013 GB/T 32457-2015 Tape cover layer performance | |||||
| Cover Layer Grade | Tensile Strength | Elongation at Break | Abrasion Loss | Change rate of tensile strength and elongation at break after aging | |
| Mpa | Kgf/cm2 | % | mm 3 | % | |
| H | 24 | 240 | 450 | 120 | -25 ~+25 |
| D | 18 | 180 | 400 | 100 | -25 ~+25 |
| L | 15 | 150 | 350 | 200 | -25 ~+25 |
| German standard DIN-22102 | ||||||
| Grade | Tensile strength ≥Ma | Elongation at break ≥M% | Abrasion loss ≥mm 3 | Interlayer bonding strength (N/mm) | Bonding strength between cover layer and fabric layer (/mm) | |
| Cover layer thickness 0.8~1.5mm | Cover layer thickness >1.5mm | |||||
| W | 18 | 400 | 90 | ≥5 | 3.5 | 4.5 |
| X | 25 | 450 | 120 | |||
| Y | 20 | 400 | 150 | |||
| Z | 15 | 350 | 250 | |||
| British Standard BS 490 | ||||||
| Grade | Tensile strength ≥Ma | Elongation at break ≥M% | Abrasion loss ≥mm 3 | Interlayer bonding strength (N/mm) | Bonding strength between cover layer and fabric layer (/mm) | |
| Cover layer thickness 0.8~1.5mm | Cover layer thickness >1.5mm | |||||
| M | 24 | 450 | - | ≥5.25 | 3.15 | 4.5 |
| N | 17 | 400 | - | |||
| Australian Standard AS 1332-2000 | ||||||
| Grade | Tensile strength ≥Ma | Elongation at break ≥M% | Abrasion loss ≥mm 3 | Interlayer bonding strength (N/mm) | Bonding strength between cover layer and fabric layer (/mm) | |
| Cover layer thickness 0.8~1.5mm | Cover layer thickness >1.5mm | |||||
| A | 17 | 400 | 70 | 6 | 4 | 4.8 |
| E | 14 | 300 | - | |||
| F | 14 | 300 | - | |||
| M | 24 | 450 | 125 | |||
| N | 17 | 400 | 200 | |||
| S | 14 | 300 | 250 | |||
| S* | 12 | 300 | 250 | |||
| South African SANS 1173:2005 | ||||||
| Grade | Tensile strength ≥Ma | Elongation at break ≥M% | Abrasion loss ≥mm 3 | Interlayer bonding strength (N/mm) | ||
| Bonding strength between cover layer and fabric layer (N/mm) | ||||||
| A | 18 | 400 | 90 | ≥7 | ≥5 | |
| X | 25 | 450 | 120 | |||
| M | 24 | 450 | 150 | |||
| N | 20 | 400 | 250 | |||
Specifications and technical parameters of EP polyester multi-layer fabric core conveyor belt
| Fabric Type | Fabric Structure | Fabric Model | Rubber Thickness (mm/p) | Strength Series (N/mm) | Cover Rubber Thickness | Width Range (mm) | ||||||
| Warp | Weft | 2 layers | 3 layers | 4 layers | 5 layers | 6 layers | Top cover layer | Bottom cover layer | ||||
| EP polyester | Nylon | Nylon | NN-100 | 1.00 | 200 | 300 | 400 | 500 | 600 | 0-12 | 0-10 | 300-2500 |
| NN-125 | 1.05 | 250 | 375 | 500 | 625 | 750 | ||||||
| NN-150 | 1.10 | 300 | 450 | 600 | 750 | 900 | ||||||
| NN-200 | 1.20 | 400 | 600 | 800 | 1000 | 1200 | ||||||
| NN-250 | 1.40 | 500 | 750 | 1000 | 1250 | 1500 | ||||||
| NN-300 | 1.60 | 600 | 900 | 1200 | 1500 | 1800 | ||||||
Bonding strength and elongation performance meet the following table
| Bonding Strength, Elongation Performance | |||||
| Core material | Bonding Strength | Elongation Performance | |||
| Between plies N/mm | Between cover and ply N/mm | Total thickness longitudinal breaking elongation | Total thickness longitudinal reference force elongation | ||
| Cover thickness ≤1.5mm | Cover thickness ≥1.5mm | ||||
| EP polyester canvas | ≥5 | ≥4.5 | ≥5 | ≥10% | ≤4%6 |
The belt's covering performance conforms to the table below
| China GB/T7984-2013 GB/T 32457-2015 Tape cover layer performance | |||||
| Cover Layer Grade | Tensile Strength | Elongation at Break | Abrasion Loss | Change rate of tensile strength and elongation at break after aging | |
| Mpa | Kgf/cm2 | % | mm 3 | % | |
| H | ≥24 | ≥240 | ≥450 | ≤120 | -25~ +25 |
| D | ≥18 | 180 | ≥400 | ≤100 | -25~ +25 |
| L | ≥15 | 150 | ≥350 | ≤200 | -25~ +25 |
Packaging and Transportation
 |
 |
|
|
Packaging Details
1. Waterproof nylon packaging, with a bottom steel pallet or wooden pallet.
2. Standard and appropriate export packaging.
3. Customized packaging is available according to customer requirements.
Frequently Asked Questions
1. Can I customize conveyor belts to meet my business needs?
►Yes, we are a professional custom conveyor belt manufacturer ， focused on customized conveyor belt solutions. We work closely with our clients to customize belt width, thickness, material composition, and various quality aspects according to their specific operational requirements. This ensures our conveyor belts perform optimally in diverse industrial settings.
2. What payment methods do you accept?
►We offer flexible payment options to meet customer needs. Commonly used payment methods include Telegraphic Transfer (T/T) and Letter of Credit (L/C) ，especially suitable for large orders. We can also negotiate other payment methods based on mutual agreement.
3. What after-sales service do you provide? How do you guarantee your quality?
►We provide comprehensive after-sales service support, including 24/7 technical support, installation assistance, and maintenance advice 。We also provide regular follow-up services to ensure smooth product operation and long-term customer satisfaction! We have an in-house testing laboratory and adhere to the principle of only releasing qualified products! For many years, we have been one of the suppliers to internationally renowned companies, and our customers are spread across various industries globally, including mining, stone crushing, sand washing, ports, power plants, metallurgy, chemicals, coal, steel plants, cement plants, and construction, with our excellent quality widely praised.
4. How do I place an order? What is the delivery time?
►You can contact us via WeChat, WhatsApp, phone, email, and website to place an order. For regular models, 5-7 days delivery ，the delivery time for other customized products depends on the product type and customization requirements.
5. Can I get samples for inspection and testing?
►Yes, samples can be provided for testing before bulk orders. Samples are created according to customer requirements, allowing customers to evaluate the performance of the belts and rollers.
6. Can I print my LOGO on the conveyor belt products?
►Yes, we are a custom manufacturer, supporting processing, OEM, please inform us of your logo or design before mass production.
| Strong team with rich experience | Advanced and first-class production equipment | First-class testing equipment | Successful customer collaborations |
 |
 |
 |
 |
| Our global sales and R&D teams go beyond transactional relationships, providing personalized support at every stage of the customer journey. | We have invested heavily in advanced conveyor belt production lines, including automated systems that guarantee the precision, reliability, and scalability of our products. | We have in-house testing equipment to ensure that every conveyor belt we produce undergoes rigorous quality control. From tensile strength and wear resistance to high-temperature resistance, we can meet your requirements. | We have established long-term partnerships with customers in the cement, mining, power plants, chemical, steel, coal, mining, and grain industries, fully demonstrating the trust and confidence companies have in us. |
Why Choose Our Conveyor Belts?
1. Engineering Design and Consulting
FANGNUO Rubber Conveyor Belt is one of the best custom belt manufacturers in China. Our conveyor belts are ideal for handling various heavy-duty and abrasive materials for bulk material handling, successfully meeting the needs of various industries, including stone crushing and screening, sand washing, fertilizer, grain conveying, steel plants, power plants, cement plants, metallurgy, coal, ports, construction, etc. As a one-stop conveyor engineering manufacturer, we also provide excellent solutions for material handling problems and after-sales service for various applications.
2. Excellent Customer Service
We specialize in producing heavy-duty (nylon, EP polyester, EE, NN) multi-ply fabric core rubber conveyor belts, steel cord conveyor belts, corrugated edge conveyor belts, bucket elevator conveyor belts, and chevron conveyor belts, ring conveyor belts, etc. As a high-quality conveyor belt manufacturer, supplier, and exporter in China, we are committed to providing customers with high-quality conveyor belts and professional services. FANGNUO has grown rapidly through innovation and professional services, and we are eager to expand our domestic and international markets!
3. Customization
OEM supported, meeting all your needs, regardless of size, even if you only have an idea, we will help you realize it.
We have a strong R&D team that can develop and produce products based on drawings or samples provided by customers.
4. Cost-effectiveness
Same quality, lower price; same price, better quality; fast production cycle; short time; efficient and durable; reliable quality. We are based in the mid-to-high-end market, and our products meet international standards.
Professional testing equipment (conveyor belt testing laboratory)
Application Areas
Cement Industry Limestone Transportation |
Chemical Industry Hazardous Materials Transportation |
Mining Industry Raw Material Transportation |
Quarrying Sand and Gravel Conveying |
FAQ
Characteristics of Polyester Conveyor Belt
High modulus, low elongation, good heat stability, impact resistance and other characteristics, suitable for medium and long distance, high-speed, high-speed conditions of conveying materials.
Body material for heat-resistant conveyor belts
The subject material of the heat-resistant conveyor belt includes a skeleton material, a covering layer and a base material.
Selection of the diameter of the conveying roller
The selection of roller diameter should consider the following factors: the average specific pressure between the conveyor belt and the roller surface, the amount of deformation of the bag and the bag, the utilization rate of the allowable strength of the conveyor belt, the frequency of bending of the conveyor belt, the installation location of the conveyor and the conditions of use.
Main material of nylon conveyor belt
The main material of the nylon conveyor belt is nylon, but it does not have enough tension, so it is necessary to add a layer of industrial polyester cloth between nylon and nylon to increase the tension when making the finished product.
The advantages of the pattern conveyor belt
The pattern conveyor belt can ensure the smooth transportation of materials, with anti-skid, impact resistance, and high temperature resistance.
