Details

Uses

Due to site limitations or the need to lift materials at a large inclination angle, in order to prevent the scattering of conveyed materials, it is suitable for conveying materials under an angle (0-90°) condition.

We design and manufacture rubber conveyor belts. Most of our clients have different needs, and we strive to meet these needs by manufacturing custom belts.

The following are the industries we serve;

• Aggregates and Mining • Cement • Steel/Metal • Energy/Thermal Power Generation • Fertilizer/Chemicals • Ports • Agriculture • Waste/Recycling

Quality Control

• Our large-scale bucket elevator belts have a strict quality control system designed throughout the production process: raw materials-semi-finished products-finished products. Each step of the semi-finished product must be tested before proceeding to the next processing step. Non-conforming parts are not allowed to proceed to the next processing step.
• All finished products must be tested, and only qualified products can leave the factory.

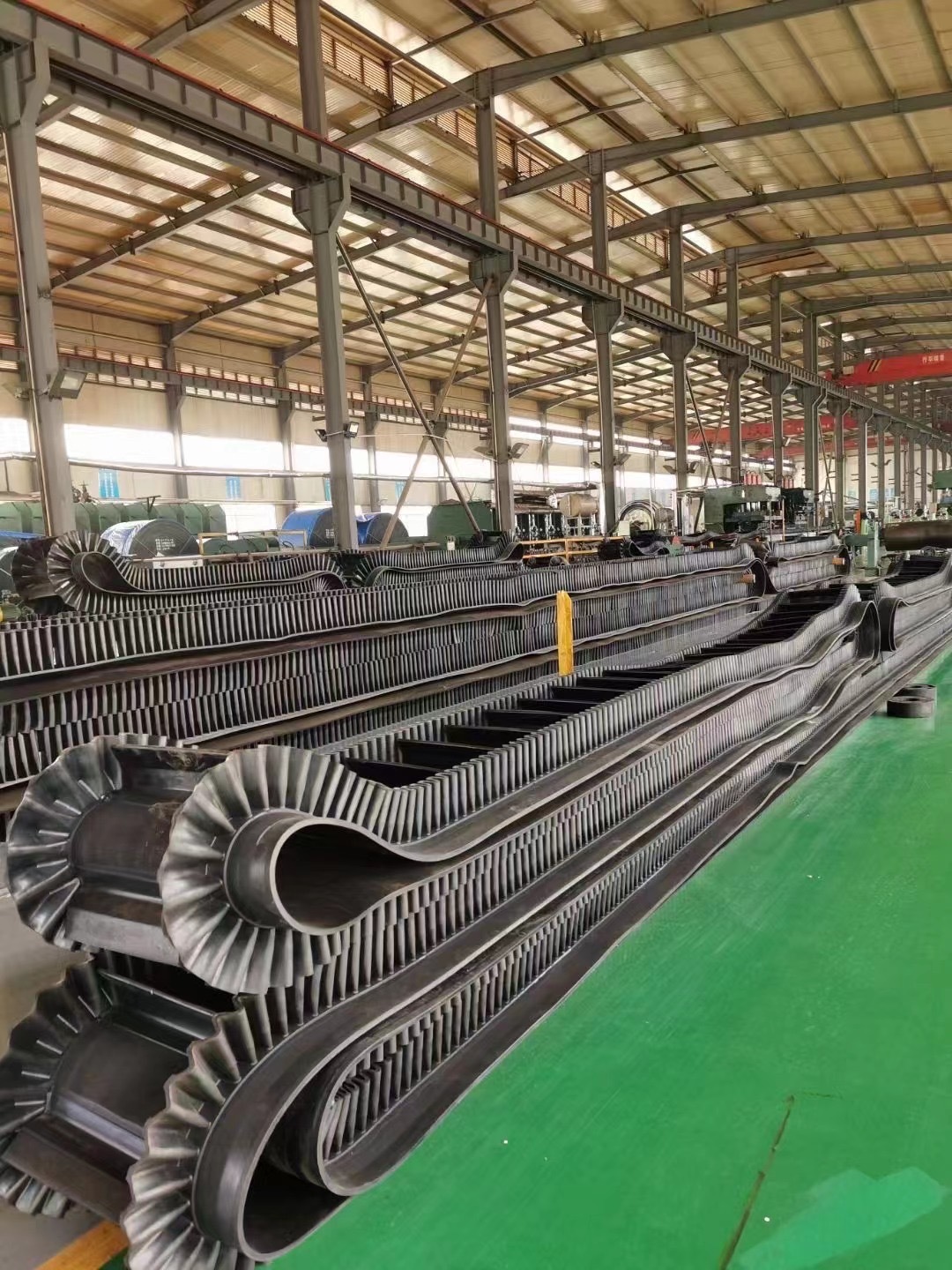

Product Photos

Side Technical Data

Model	Type	Height (Sh)	Sidewall-Bottom Width (Sw)	Pitch (P)	Weight (kg/m)
	Standard	40	30	25	0.58
		60	50	40	1.55
		80			1.82
		100			2.20
		120			2.65
	Textile Reinforced	120	75	63.2	3.20
		160			4.76
		200			6.45
		240			7.50
		250			6.37
		280			8.90
		300			9.33
	HD	300	100	83	12.10
		400			18.72
		500			16.80

Partition Technical Data

Model	Type	Height (mm)	Bottom Width (mm)
	C55	55	75
	C75	75	90
	C90	90	110
	C110	110	110
	T40	40	70
	T55	55	80
	T75	75	100
	T90	90	110
	T110	110	110
	T140	140	160
	T180	180	160
	TC75	75	85
	TC90	90	110
	TC110	110	110
	TC140	140	150
	TC180	180	150
	TC230	230	160
	TC280	280	160
	TCS230	230	105
	TCS280	280	105
	TCS360	360	200
	TCS470	470	200

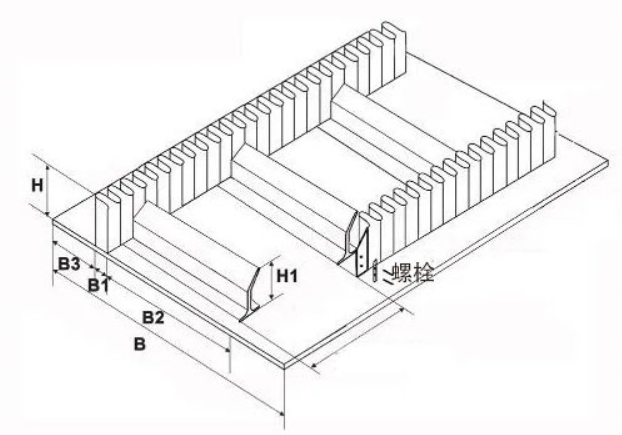

Wavy Edge High Angle Conveyor Belt Data Table

Fabric Core Data

Cover Rubber Quality/Grade Standard Performance Parameters

Packaging and Transportation

Packaging Details

1. Waterproof nylon packaging, with steel pallet at the bottom.

2. Standard and suitable export packaging.

3. According to customer requirements.

Frequently Asked Questions

1. Can I customize conveyor belts to meet my business needs?

►Yes, we are a professional custom conveyor belt manufacturer ， focused on customized conveyor belt solutions. We work closely with our clients to customize the belt width, thickness, material composition, and various quality products according to the client's specific operational requirements. This ensures that our conveyor belts perform optimally in different industrial environments.

2. What payment methods do you accept?

►We offer flexible payment methods to meet customer needs. Common payment methods include Telegraphic Transfer (T/T) and Letter of Credit (L/C) ，especially suitable for large orders. We can also agree on other payment methods according to the agreement between both parties.

3. What after-sales service do you provide? And how do you guarantee your quality?

►We provide comprehensive after-sales service support, including 24/7 technical support, installation assistance and maintenance suggestions 。We also provide regular follow-up services to ensure smooth product operation and long-term satisfaction! We have an in-house testing laboratory and adhere to the principle of qualified products before shipment! For many years, we have been one of the suppliers to internationally renowned companies, and our customers are located in various countries and industries, including mining and quarrying, sand washing, ports and docks, power, metallurgy, chemical, coal, steel plants, cement plants, and construction, and our excellent quality is widely praised.

4. How do I place an order? What is the delivery time?

►You can contact us via WeChat, WhatsApp, phone, email, and website to place an order. For regular models, 5-7 days delivery ，the delivery time for other customized products depends on the product type and customization requirements.

5. Can I get a sample for inspection and testing?

►Yes, samples can be sent for testing before bulk orders. Samples are created according to customer requirements, allowing customers to evaluate the performance of belts and rollers.

6. Can I print my LOGO on the conveyor belt products?

►Yes, we are a customized manufacturer, supporting processing, OEM, please inform us of your logo or design before mass production.

Experienced and strong team	Advanced and first-class production equipment	First-class testing equipment	Successful customer cooperation
Our global sales and R&D teams go beyond transactional relationships, providing personalized support at every stage of the customer journey.	We have invested heavily in advanced conveyor belt production lines, including automated systems that ensure the precision, reliability, and scalability of our products.	We have in-house testing equipment to ensure that every conveyor belt we produce undergoes rigorous quality control. From tensile strength and wear resistance to high-temperature resistance, we can meet your requirements.	We have established long-term cooperative relationships with customers in the cement, mining, power plants, chemical, steel, coal, mining, and grain industries, fully demonstrating the trust and confidence of enterprises in us.

Why choose our conveyor belts?

1. Engineering design and consulting

FANGNUO Rubber Conveyor Belt is one of the best custom belt manufacturers in China. Our conveyor belts are ideal for handling various heavy and abrasive materials for bulk material handling, successfully meeting the needs of various industries, including stone crushing and screening, sand washing, chemical fertilizers, grain conveying, steel plants, power plants, cement plants, metallurgy, coal, ports and docks, and construction. As a one-stop conveyor engineering manufacturer, we also provide excellent solutions for material handling problems and after-sales service for various applications.

2. Excellent customer service

We specialize in the production of heavy-duty (nylon, EP polyester, EE, NN) multi-layer fabric core rubber conveyor belts, steel cord conveyor belts, corrugated edge conveyor belts, bucket elevator conveyor belts, and herringbone conveyor belts, ring conveyor belts, etc. As a high-quality conveyor belt manufacturer, supplier, and exporter in China, we focus on providing customers with high-quality conveyor belts and professional services. FANGNUO Company has grown rapidly with innovation and professional services, and we are eager to expand our domestic and international markets!

3. Customization

OEM is supported to meet all your needs, regardless of size, even if you only have an idea, we will help you realize it.

We have a strong R&D team that can develop and produce products according to drawings or samples provided by customers.

4. Cost-effective

Same quality, lower price; same price, better quality; fast production cycle; short time; efficient and durable; reliable quality. We are based in the mid-to-high-end market, and our products meet international standards.

Professional testing equipment (conveyor belt testing laboratory)

Application areas

Cement industry Limestone transportation

Chemical industry Hazardous goods transportation

Mining industry Raw material transportation

Quarrying Sand and gravel conveying
